introducting the new roe visual black marble bm2 interactive led panel with brightlogic touch technology
2.8mm High Resolution Pixel Pitch (216px x 216px)
The highest resolution touch sensing in the industry - 144 Sensors Per Panel
Beautiful Matte Finish - The non-reflective matte finish is ideal for broadcast and live events
The BM2i LED floor panel has stunning visual performance and an excellent ICVFX behavior, ideal for film, XR stages, and broadcast solutions. Its small, 2mm pixel pitch makes it the perfect match for NPP LED walls. Now with the addition of BrightLogic’s Touch Technology, it brings the BM2 to a whole new level! Check out some of the experiential applications/games available for licensing/customization.
The Black Marble BM2i LED panels are designed to offer a stylish solution for LED floors and integrated walls. The matte finish of the top layer allows for high-end use with a chic and classy appearance and has a perfect in-camera performance.
Fast and Easy Set-up
All support options are easy and fast to install, using a minimal number of tools, reducing assembly time and saving labor costs.

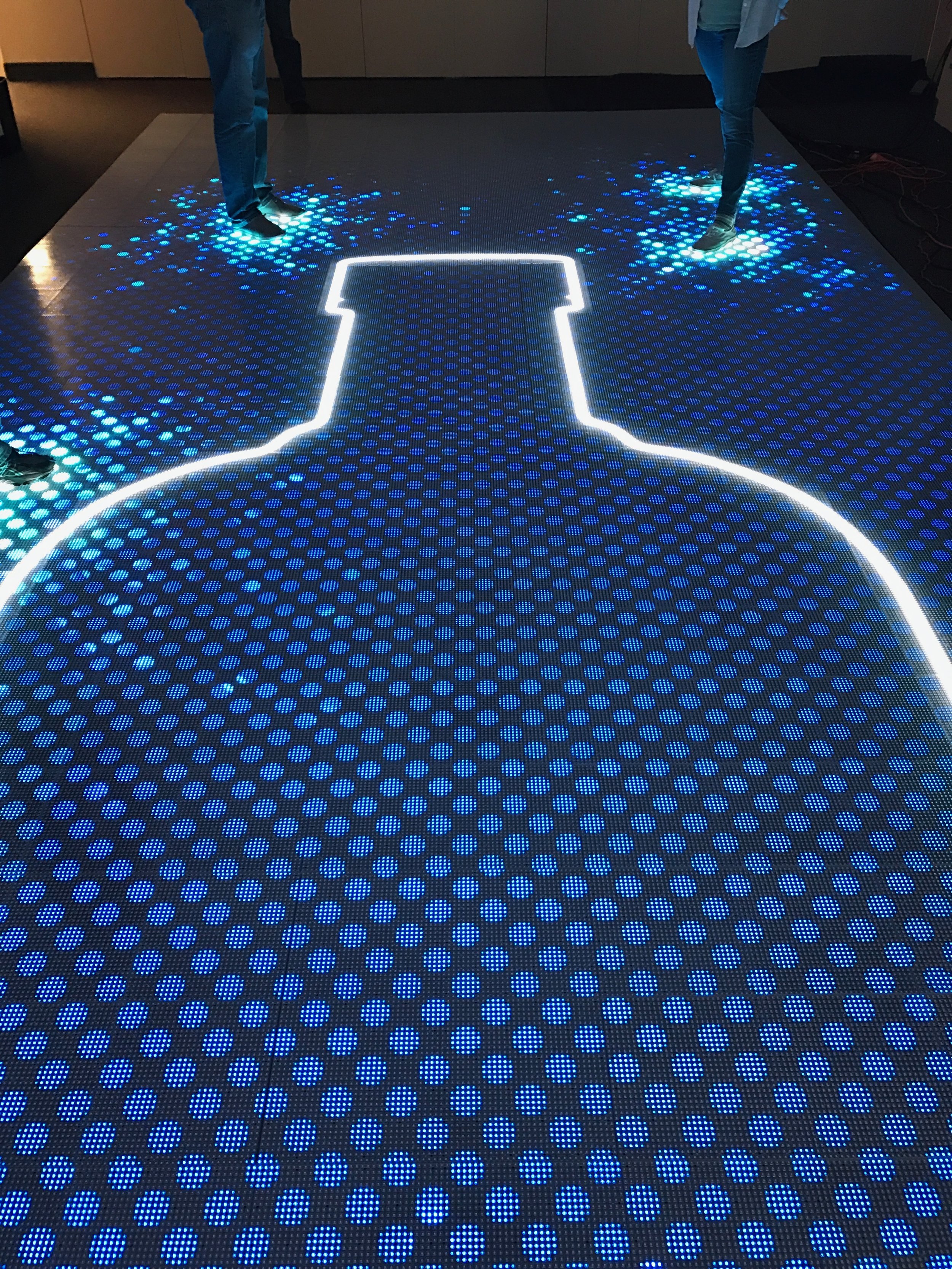

Interactive Features
The Black Marble BM2i introduces BrightLogic’s latest Interactive Sensing Technology with the highest resolution sensing in the LED flooring industry. The panel has 144 sensors which enables incredibly fast detection (<33milliseconds) no matter how many sensors are triggering across an entire floor.
Interactive Application Library
BrightLogic has developed a large library of gaming/experiential applications. Games can be customized to fit the clients needs.
Video Processing
Brompton or Megapixel Processors.
BM2i Technical Details
| Pixel Pitch: | 2.82mm |
| Max Brightness Calibrated: | 800 Nits |
| Panel Dimensions: | 609.6mm x 609.6mm x 133mm 24" x 24" x 5.2" 153mm - 193mm (Base Frame) |
| Panel Resolution: | 216px x 216px |
| Panel Weight: | 18.6kg; 41.0lbs |
| Power Consumption (Max/Average): | 310W / 155W |
| BTU Max/Average: | 1060 / 490 |
| Serviceability: | Front |
| LED Configuration: | SMD 1515 Black |
| Viewing Angle Horizontal: | 140° |
| Scan Rate: | 1/12 |
| Refresh Rate: | 7680Hz |
| IP Rating: | IP65 |
| Certifications: | CE, ETL, FCC, WEEE |
